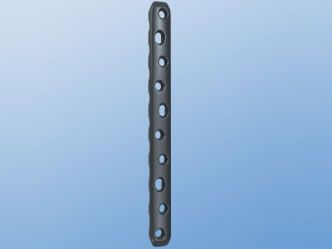

Femoral Locking Plate

Product Information

Product Name	Product No.	Holes	Length(mm)
Femur LOC Plate	10703-007	7	128
	10703-008	8	146
	10703-009	9	164
	10703-010	10	182
	10703-012	12	218
	10703-014	14	254
	10703-016	16	290

Note: Used for femoral shaft fracture with HA5.0 locking screws, HA4.5 cortical screws, and simple set for large bone Loc system.

Package and Sterilization Treatment
The product is supplied in the non-sterile package. After originally packed with the paper plastic package, the product will be put into the plastic bag together with the Operation Instructions and the Product Qualification Certificates.

The paper plastic roll bag is used as the inner package. It is compounded from the medical dialysis paper and plastic film. The production environment is controlled with the cleanness of Class 10,000. In the cleaning shop, the package bag is cut according to the product size. Then, its one side will be sealed with the heat-sealing machine. After the bag has been used to contain the product, its other side needs to be sealed with the sealing machine.

The paper plastic, into which the product has been put, will be cleaned in the controlling area where the cleanliness is of Class 10,000. All the cleaning methods have been inspected. The product packed with this method needs no cleaning prior to use. It just needs to be treated with sterilization in accordance with the methods specified in the Product Instructions.
